Artificial Intelligence (AI) project: FluKIT measurements of rivers beds



We work on the topic of artificial intelligence (AI) with the in-house developed software tool, the optiflowNeuralNetwork (ONN) tool which we use for data evaluation and modeling. Based on a textfile in .net format the data can be prepared for the neural network tool.

The software tool Reason and the optiflow neural network tool are written in C++ under Qt. (The name Reason was motivated by the novel "Dirk Gently's Holistic Detective Agency" written by Douglas Adams in 1987.) Currently we are working on porting the software tool to the Qt-Creator for the research-project FluKIT.

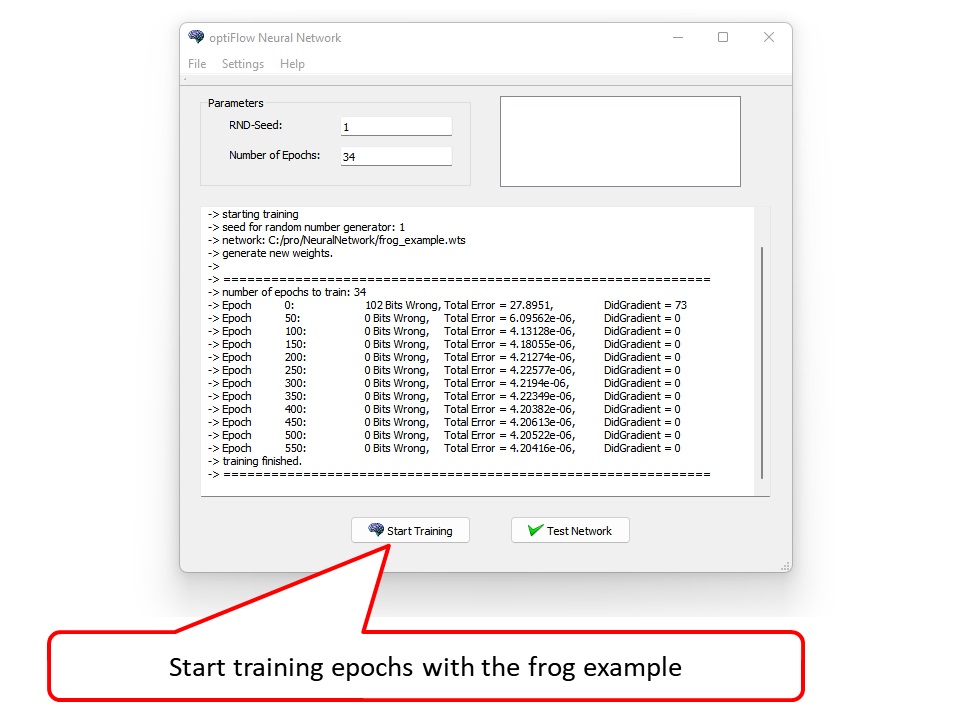

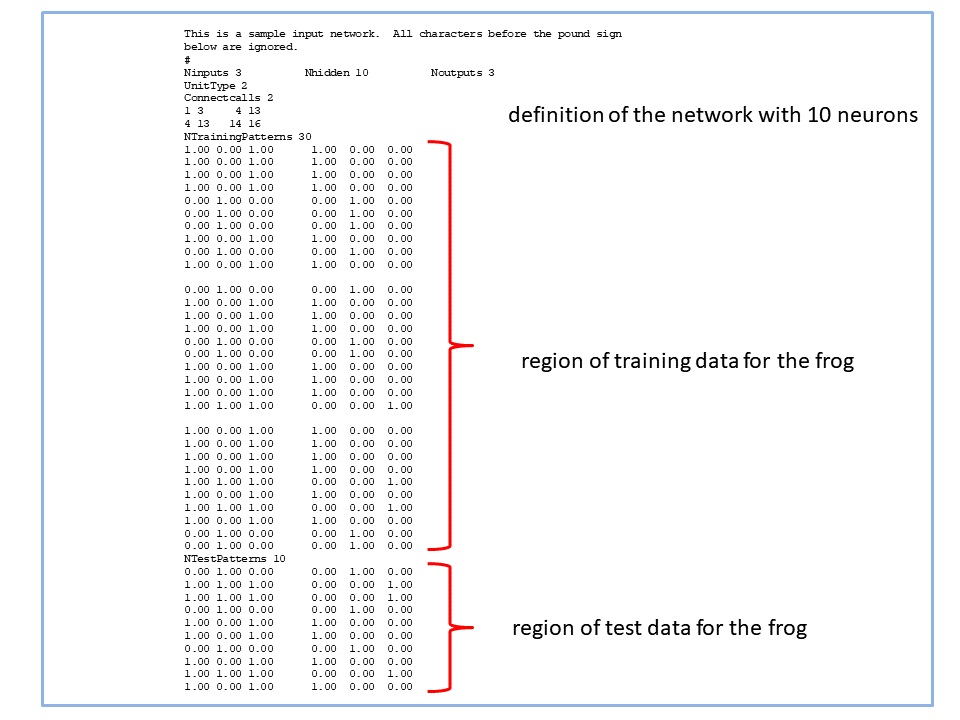

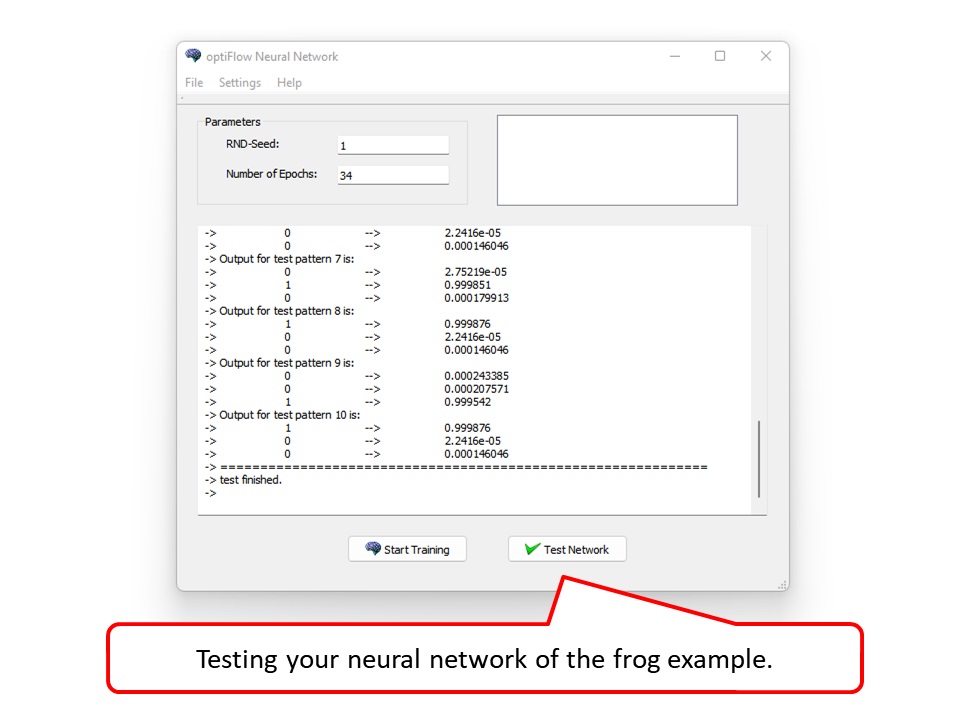

The simple starting test cases for AI, e.g. a frogs behaviour can be teached for further reactions.

We are preparing our research project FluKIT about artificial intelligence predicition of river flow velocities to learn how to optimize maritime measurement methods. Inside the installation folder of the optiflow neural network (ONN) a first example for the riverbed can be found (river_example.net).

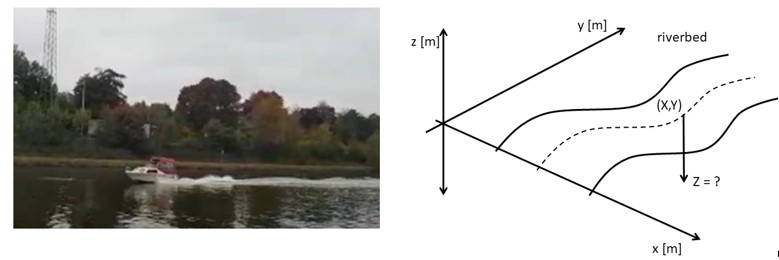

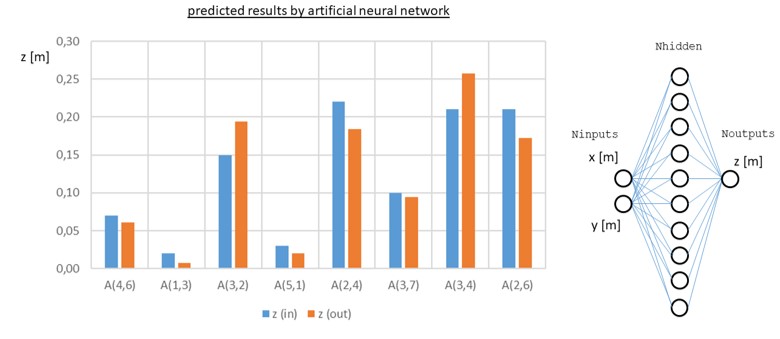

Research ship LUNA on the Saar river (Germany) and Cartesian measurement plan and data acquisition with ship position (X,Y) on the river. Example for measurement of data for the riverbed depth and data predication with ONN.

Measurement data of the river bed of the Saar river in Saarbrücken:



Messfahrt1103_90Grad_15.txt



Messfahrt1103_90Grad_15.txt



Messfahrt1103_90Grad_2.txt



Messfahrt1103_90Grad_3.txt



Messfahrt1103_90Grad_4.txt



Messfahrt1103_90Grad_5.txt



Messfahrt1103_90Grad_51.txt



Messfahrt1103_90Grad_7.txt



Messfahrt1103_90Grad_8_ZickZAck.txt



Messfahrt1103_90Grad_TestmessungHafen.txt
